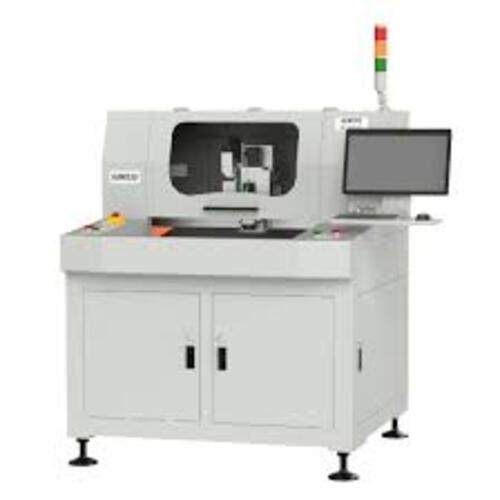

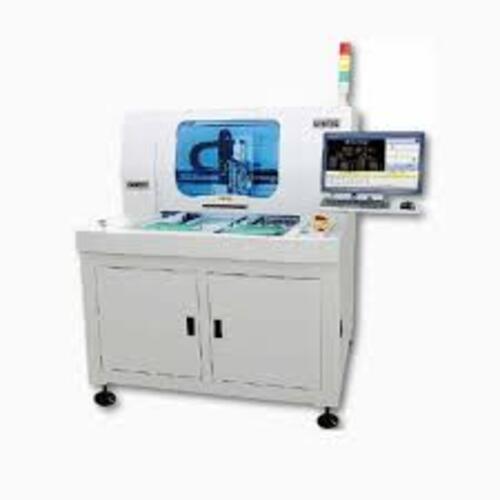

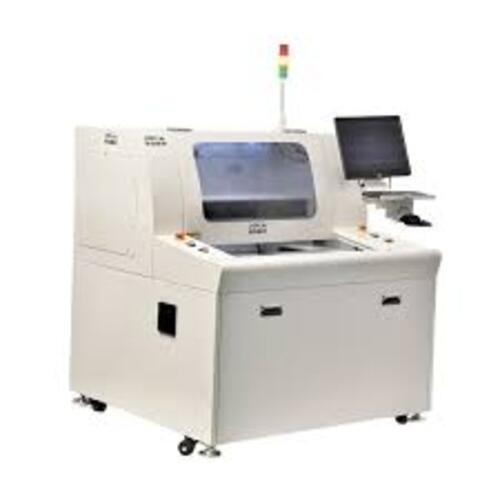

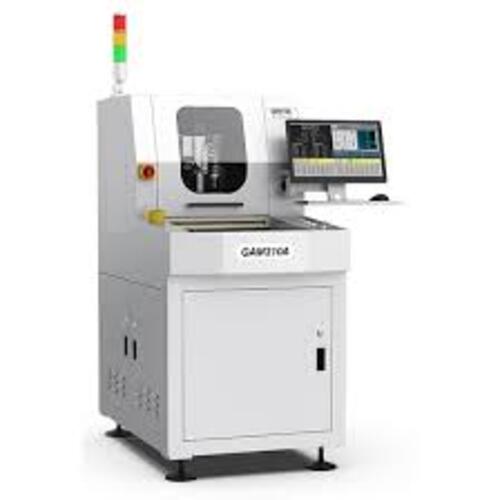

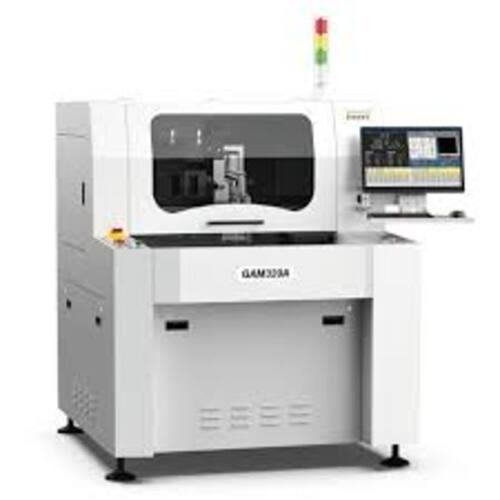

PCB Router Machine

Price 1.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

PCB Router Machine Specification

Product Type
Industrial use

Material
SS

Capacity
200 Pcs/hr

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Processing Type
Electric

Voltage
220 Volt (v)

Power
220 Volt (v)

Dimension (L*W*H)
(11250 * 650 * 1550 Millimeter (mm)

Weight
900 Kilograms (kg)

Color
White

Warranty
12 Months

PCB Router Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
30 Days

About PCB Router Machine

1. The full-vision single-table intelligent curve board splitter (hereinafter referred to as this machine) is an automated production equipment for full-vision continuous board cutting that the company has launched on the market after years of technical research and actual verification in the factory for many years.

2. The entire series is equipped with a CCD whole-board visual programming system. Technicians only need to draw straight lines and arcs on the picture to easily complete program editing, which completely subverts the traditional programming mode and greatly reduces program editing and debugging time;

3. High-speed spindle and high-speed saw blade motor are used to cut PCB boards, with small cutting stress, high precision, and suitable for PCB boards of any shape.

4. This machine is equipped with a broken knife detection function, which can detect the use status of the knife in time.

5. The machine is equipped with a safety grating to ensure operator safety.

6. This machine has its own CPK accuracy detection function, which can perform self-diagnosis at any time to ensure the stability of the equipment.

7. High-efficiency integrator makes maintenance and cleaning easier. 8. The full visual curve splitting system software supports WIN10 system, which is safe and stable.

Technical parameters

machine type Q 330

Effective cutting size 330*380MM

Cutting function Straight lines, points, arcs, etc.

Processing table single table

Cutting accuracy 0.0 5MM

Machine repeatability positioning accuracy 0.01MM

Maximum movement speed X, Y1, Y2 axis: 1000mm/s, Z axis 800mm/s

Spindle Domestic windward spindle

Screw/Guide Rail Taiwan TBI grinding screw/Taiwan Hiwin guide rail

CCD Camera Hikvision high-speed camera

Electrostatic treatment Static eliminator (high frequency ion nozzle)

Tool change mode Manual tool change

Spindle speed MAX:60000rpm

Tool monitoring Automatic tool sinking and tool breaking (optional)

Cutting speed 5100mm/s adjustable

PCB cutting thickness 0.3-3.0MM

Program teaching method Whole board puzzle, picture drawing line teaching

control method PC precision four-axis control system

X, Y1, Y2, Z axis drive mode Domestic servo drive (Panasonic optional

Industrial control host Industrial computer (WIN10 system)

Applicable milling cutter size 0.83.0MM

Host power specifications AC220V 50/60HZ single phase

Cutting host size L*W*H(1250 * 650 * 1550mm )

Cutting machine weight 900 kg

Dust collector power 3HP

Dust collector power specifications AC380V three-phase

Dust collector size L 800mm *W 400mm * H 780mm

Dust collector weight 60kg

Dust collection method Lower dust collection /upper dust collection (optional)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Pcb Handling Machine Category

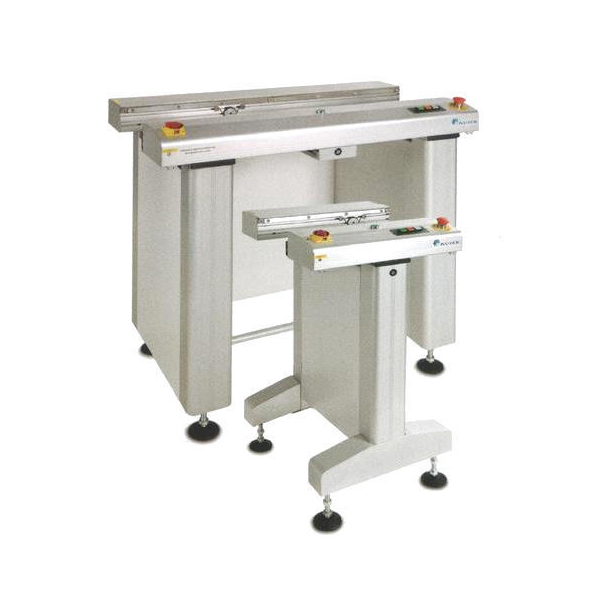

Industrial Pcb Handling Machine
