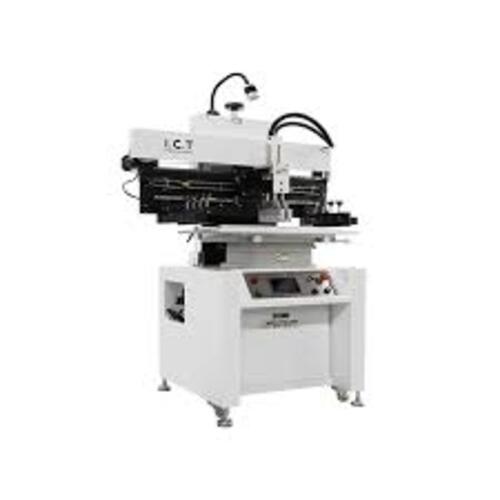

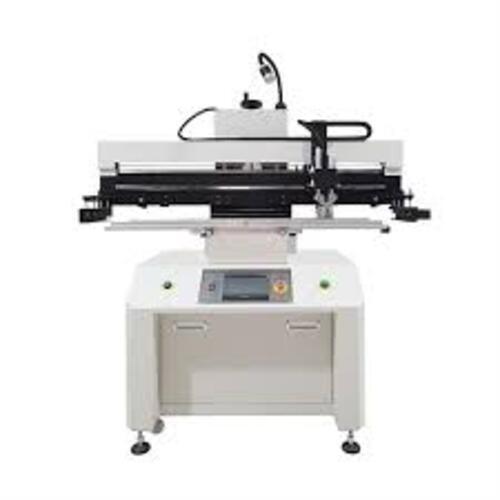

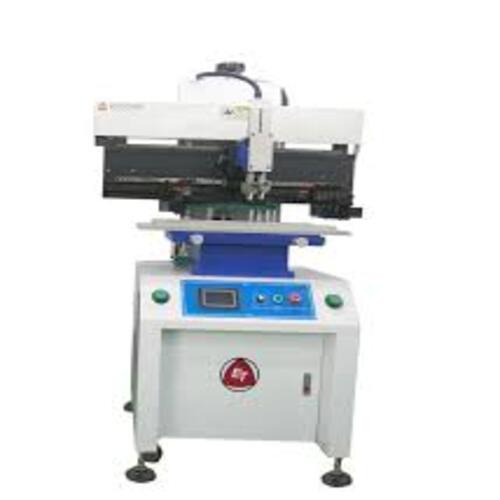

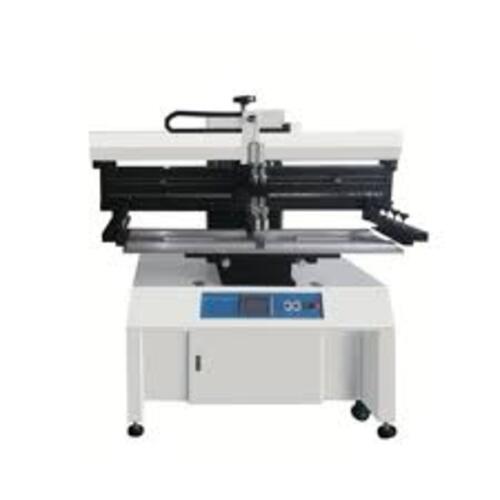

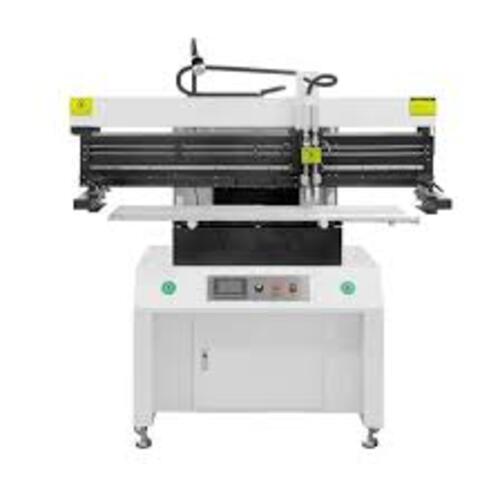

Semi Automatic Solder Paste Printer

Price 260000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Semi Automatic Solder Paste Printer Specification

Processor Type
SOLDER PASTE PRINTER

Function
PCB PRINTING

Humidity %
70%

Print Technology
NO

Power Supply
SINGLE PHASE

Condition
New

Material
SS

Voltage
220 Volt (v)

Automatic Grade
Semi-Automatic

Use
FOR INDUSTRIES

Semi Automatic Solder Paste Printer Trade Information

Minimum Order Quantity
1 Piece

FOB Port
NEW DELHI

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
3 Pieces Per Week

Delivery Time
7 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About Semi Automatic Solder Paste Printer

Model Printer -SP 1200
Printing Table Area 1300 X 350 mm
Frame Dimension 370 X 470 mm, 1500 X 650 mm
PCB Board Size 600 X 250 mm, 1200 X 320 mm
PCB Board Thickness 0.2 - 3 mm
Positioning System PCB Outer or Pin Positioning
Adjusting for Table Front / Back 10 mm R/L 10 mm
Printing Accuracy 0.02 mm
Repenting Accuracy 0.03 mm
Minimum Spacing 0.35
Air Used 4-7 kg f/cm2
Voltage 220 V 50/60 Hz 100 W
Machine Dimension ( L*W*H ) 1700 * 900 * 1650 mm
Machine Weight 320 kg

Precision Engineering for Reliable Performance

Built with robust stainless steel, our semi-automatic solder paste printer guarantees consistent, high-precision application for PCB manufacturing. Semi-automation combines operator control with consistent prints, making it versatile for various production scales and requirements.

Optimized for Industrial Usage

This printer is specially crafted for industrial environments where efficiency, reliability, and precise PCB printing are essential. The semi-automatic mechanism provides adaptability to different production capacities while maintaining strict quality standards.

FAQ's of Semi Automatic Solder Paste Printer:

Q: How does the semi-automatic solder paste printer operate?

A: The semi-automatic solder paste printer allows an operator to manually align the PCB and initiate the printing process. The printer automates the application of solder paste onto the PCB through a guided mechanism, ensuring accuracy with every print cycle.

Q: What materials are used in the construction of this solder paste printer?

A: This solder paste printer is manufactured using high-quality stainless steel (SS), making it durable and ideal for industrial use. The robust material ensures longevity and resistance to corrosion in demanding production environments.

Q: When is it beneficial to use a semi-automatic solder paste printer?

A: A semi-automatic printer is most beneficial for medium-scale manufacturing where manual labor requires assistance for precision and consistent output, but full automation may not be justified. It suits production processes that demand high accuracy and repeatability.

Q: Where can this printer be implemented within a manufacturing facility?

A: The machine is typically set up within the PCB assembly section of an electronics manufacturing unit. Its design allows for straightforward integration into existing industrial lines in facilities across India.

Q: What is the process for solder paste application with this equipment?

A: The operator aligns the PCB and stencil, loads the solder paste, and then starts the semi-automatic printing process. The printer spreads the paste accurately over the PCB, preparing it for subsequent component mounting.

Q: How does using a semi-automatic solder paste printer benefit PCB production?

A: Using this printer improves print consistency, reduces errors from manual paste application, and enhances throughput. It also helps maintain uniformity across multiple PCBs, which is essential for large-volume production.
