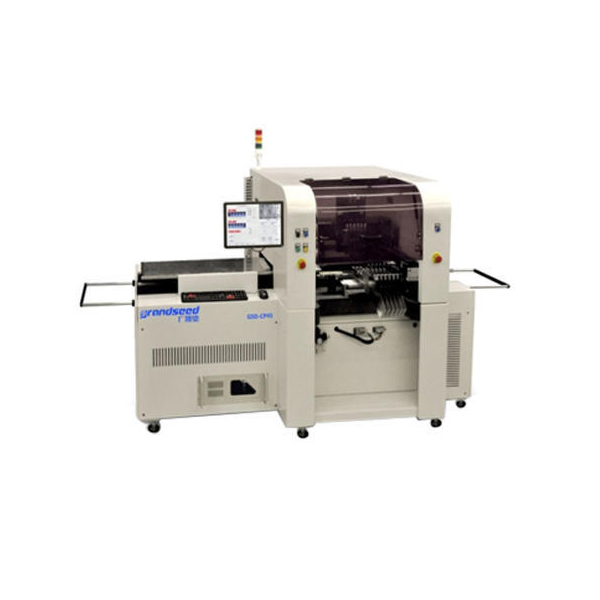

LED Light Assembly Machine

Get a Price/Quote

MOQ : 1 Unit

LED Light Assembly Machine Specification

Product Type
PCB Mounting

Material
SS

Capacity
Up to 1000 LED Lights per hour (Depending on Model) Pcs/hr

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Processing Type
Soldering, Mounting, Testing and Assembly

Voltage
240 230 Volt (v)

Power
Electric Volt (v)

Dimension (L*W*H)
Approx. 2000 mm x 1000 mm x 1600 mm Millimeter (mm)

Weight
Approx. 650 kg Kilograms (kg)

Color
White/Grey (Standard) or Custom

Feeder System
Automatic SMD Component Feeder

Noise Level
65 dB

Safety Features
Emergency Stop, Overload Protection

Display
7-inch Touch Screen Interface

Operating Temperature
5C to 40C

Placement Accuracy
0.05 mm

Applicable LED Types
3528, 5050, 5630, and other SMD types

Lighting Detection
Integrated Optical Inspection System

PCB Size Range
50 mm x 50 mm to 350 mm x 450 mm

Air Pressure Requirement
0.60.8 MPa

LED Light Assembly Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Supply Ability
100 Units Per Month

Delivery Time
1

Main Domestic Market
All India

About LED Light Assembly Machine

Model	HCT-T100
Number of Heads	Fixed Bottom Vision	4
Placement Rate	Under the optimum condition	6000CPH
IPC9850	5000CPH
Feeder Capacity	Front and Back	18 Tape Feeders (Electric standard)
18+18 Tape Feeders(Optional)
25+25 Pneumatic Feeders (Optional)
IC Tray Capacity	325 x 135mm	1
Component Alignment	Vision Detection
Component Sizes	Handled by Fixed Small Camera	Smallest: 0402 (inch)
Largest: 6 x 5 (mm)
Max. Height: 15mm
Handled by Fixed Big Camera(Optional)	Smallest: 5 x5 (mm)
Largest: 20 x 20 (mm)
Resolution	X/Y Axis	Ball Screw + Servo Motor
Z Axis	Step-Servo Motor
Rotation	0 to 360
Placement Accuracy	0.05mm
X-Y Repeatability	Ball Screw	0.02mm
PCB Size	Maximum	L 300 x W 250mm
	Minimum	L 50 x W 50mm
Programming	Vision Teach-in
Coordinates Import
Main Control		Industrial PC
Power	AC 220V10% (50/60Hz, 1 phase)
Max. 1.5KW
Air Pressure	0.55-0.7MPa (5.6-7.1kgf/cm2)
External Dimension(mm)	L x W x H	700 x 900 x 1300 mm
Mass	Approximate 150kgs

Unleash a grand transformation in your LED manufacturing with the New LED Light Assembly Machine! Now with a major Price Cut and Deal exclusive to India's service providers, suppliers, and traders, this champion device features a decorated 7-inch touch screen for seamless control. Its automatic SMD feeder system ensures precision placement (0.05 mm) for 3528, 5050, 5630, and diverse SMD LEDs on PCBs from 50x50 mm to 350x450 mm. Built from premium stainless steel, mild steel, and aluminum alloy, it boasts optical inspection, robust safety, high speed (up to 1000 LEDs/hr), and true champion-grade reliability.

Key Features and Versatile Applications of the LED Light Assembly Machine

Apart from its celebrated automatic SMD feeder and advanced display, this LED Light Assembly Machine excels in soldering, mounting, testing, and full assembly. Used as an efficient workstation for both small and large PCB handling, it's suitable for lighting manufacturers, electronic design firms, and high-volume production lines. Designed for a variety of LED types and custom PCB sizes, this machine is the go-to choice for grand production environments seeking decorated performance and consistent output.

Payment, Delivery, and Packaging Information for Your LED Machine

Upon arrival, our LED Light Assembly Machine is securely packaged for safe drop-off, ensuring zero damage in transit. We offer flexible payment terms, including advance payment, exchange options, and tailored invoicing for trade partners. Our main domestic market is India, and each transaction is supported by responsive after-sales service. The machine comes with sturdy crating, ensuring an impeccable delivery experience from supplier to client location.

FAQ's of LED Light Assembly Machine:

Q: How does the automatic SMD component feeder benefit LED manufacturing?

A: The automatic SMD component feeder increases production efficiency by precisely and rapidly placing a wide range of SMD LEDs onto PCBs, reducing manual labor and errors.

Q: What safety measures are integrated in the assembly machine?

A: This LED Light Assembly Machine includes safety features like emergency stop and overload protection to ensure operator security and safeguard the equipment during operation.

Q: Where can this machine be used most effectively?

A: It's ideal for manufacturing units, electronic assembly workshops, and lighting product factories looking to automate soldering, testing, and final assembly of various LED types.

Q: What is the process for receiving and installing the machine?

A: After order confirmation, the machine is securely packaged and delivered to your site. On arrival, our technical team can assist with installation and setup to ensure optimal performance.

Q: What are the main benefits of the 7-inch touch screen interface?

A: The large display provides easy control, real-time monitoring, and customizable settings, allowing users to streamline operations and minimize setup time for each batch.
