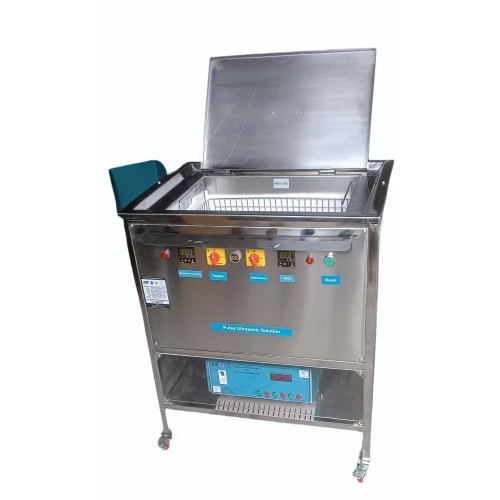

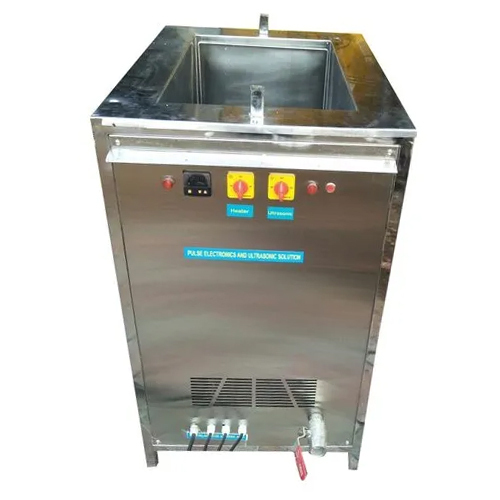

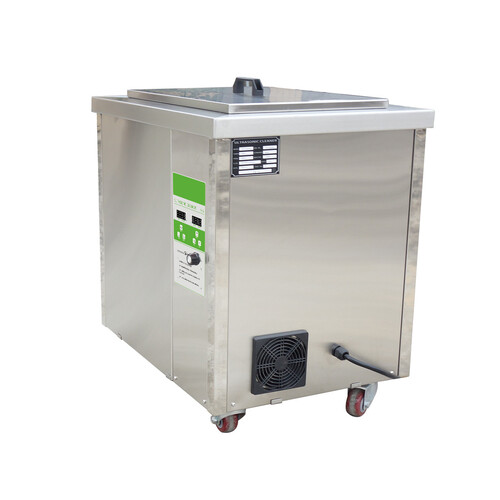

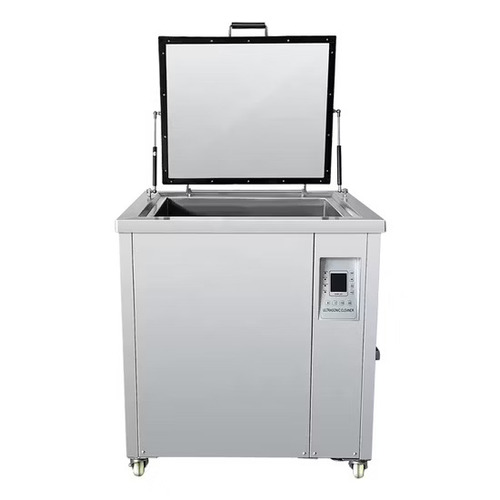

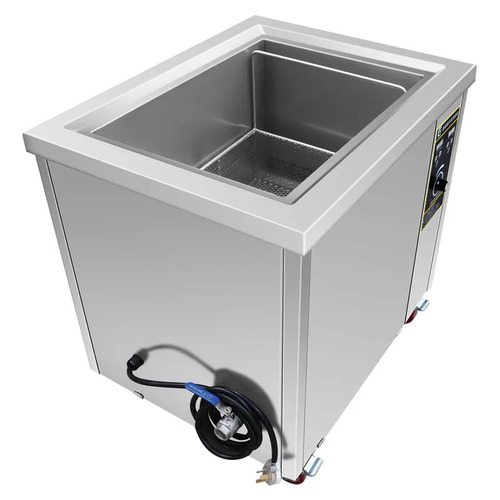

Pallet Cleaning Machine

Get a Price/Quote

MOQ : 1 Unit

Pallet Cleaning Machine Specification

Product Type
Pallet Cleaning Machine

Material
SS

Capacity
1 Pcs/hr

Computerized
No

Automatic Grade
Automatic

Control System
Human Machine Interface

Voltage
240 Volt (v)

Power
220 Volt (v)

Dimension (L*W*H)
50*50*50 Inch (in)

Weight
200 Kilograms (kg)

Pallet Cleaning Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1

About Pallet Cleaning Machine

1500W Industrial Ultrasonic Cleaning Machine

Industrial ultrasonic cleaner manufactured by Beijing Ultrasonic. We can design and customize various industrial ultrasonic cleaning machines as required.


Ultrasonic Power	1500w
Heating Power	4000W
Frequency	40khz/28khz
Tank size(mm)	630 530 400(LWH)
Machine size	750 650 675(LWH)
Voltage	220V/380V
Functions	Timer,Heating
Basket	Stainless steel basket

Material SS 304, 3 mm Thk. HSN Code:- 84798970

Tank Size 400 mm (L) x 400 mm (W) x 350 mm (H)

Cleaning Medium Vibrosol

Ultrasonic 600 W capacity transducer box at 40 kHz (+/-3 kHz) frequency by PZT sandwich type Ultrasonic Transducers mounted at the bottom of the tank. The MOSFET driven Ultrasonic Generators will housed below the tank.

Heater Thermostatically controlled Cartridge type heater of 2 KW X 1 No. Temperature Control PLC controlled close loop automatic temperature control system Cleaning cycle time control PLC controlled digital timer for setting cleaning cycle time

Float Switch SS Float Switch to protect heaters and Ultrasonic from dry running.

Operating Temp. 50OC

Drain 1 BSP drain with SS ball valve.

Inlet BSP inlet connection

Lid SS 304

Tank Housing & Panel Tank will be housed in housing fabricated out of SS material.

Basket SS wire mesh basket will be provided.

Controls All the necessary indicators & control switches will be provided on a tank panel.

ELECTRICALS:-

- All panel wiring of reputed make and cable size as per proper load.

- All electrical components of ABB/Siemens make.

- All heaters will be of Vibronics make.

- Imported Ultrasonic Transducer assemblies.

- Ultrasonic power Generator will be of Vibronics make.

GENERAL:-

- Machine will be aesthetically designed with good quality grade outer panel.

- Good manufacturing practices will be followed.

- G.A. Drawing will be submitted for approval prior to manufacturing.

- Overall size of the equipment will be approx 700L X 700W X 900 Hmm approx

UTILITES:-

- Solvent and input supply in clients scope.

- Suitable input cable to main switch on control panel in clients scope.

- All inter connecting cables from control panel to washing machine in suppliers scope.
