SMT Reflow Oven

Get a Price/Quote

MOQ : 1 Piece

SMT Reflow Oven Specification

Condition
New

Heating Capacity
35 Kilowatt (kW)

Heating Method
IR

Power Source
Electric

Control Mode
ELECTRIC

Accuracy
99.9 %

Type
Other Ovens

Usage
Electronics Manufacturing / PCB Assembly Units

Model
JAGUAR F8

Size
5300

Internal Size
3500x1000x600 Millimeter (mm)

External Size
5300x1350x1490 Millimeter (mm)

Height
1490 Millimeter (mm)

Product Type
PCB Reflow Soldering Machine

Weight
1950 Kilograms (kg)

Air Flow
300 ft3/min (CFM)

Temperature Range
350 Celsius (oC)

Color
WHITE

Length
5300 Millimeter (mm)

Width
1350 Millimeter (mm)

Material
STAINLESS STEEL

Dimension (L*W*H)
5300x1350x1490 Millimeter (mm)

Power
415 Volt (v)

Voltage
380 415 Volt (v)

Surface Finish
Galvanized

SMT Reflow Oven Trade Information

Minimum Order Quantity
1 Piece

FOB Port
NEW DELHI

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
3 Pieces Per Month

Delivery Time
1

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
WOOD BOXES

Main Export Market(s)
Asia

Main Domestic Market
All India

About SMT Reflow Oven

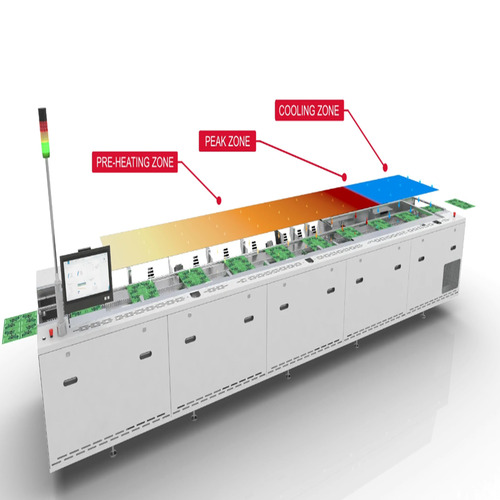

Forced Air Convection on Top & Bottom Zones
1 Forced-Air Cooling Zone
Chain Transport for Dual-Side SMD PCB Handling
In-built Temperature Profiler
Low Power Consumption
High-Quality Heat Insulation
Low/High Abnormal Temperature Alarm
Designed for wide variety of Lead Free applications
Real-time temp. monitor system (Optional)
PCB throughput sensors (Optional)

Specifications

Parameter	F8
Heating Zones	8 Top + 8 Bottom Heating Zones
Heating Length	3121mm
Cooling Zone	2 Top + 2 Bottom (Forced Cooling Air)
PCB Transport	Mesh + Chain Transport
Temp. control precision	1c
Transport Speed	100 - 2,000mm/min
Max. PCB Width	420mm (Chain) & 500mm (Mesh)
Hood opration	Motorized (without Air)
Conveyor direction	L-R (R-L optional)
Warm-Up Time	Approx. 25 minutes
Power Consumption (Start up \| Running)-	38kW \| 6-9KW
Dimensions (LWH)	5300x1350x1490mm
Weight	Approx.:1950kgs

Unlock the potential of seamless PCB assembly with our popular and first-string SMT Reflow Oven, designed for ravishing results in electronics manufacturing. Powering up with a robust 380-415 Volt electric supply, this oven stands out with its galvanized surface finish, ensuring glorious durability and reliable performance. Trusted by leading service providers, suppliers, and traders across India, our reflow oven delivers unmatched precision and efficiency. Try now to experience a breakthrough in quality and productivity for new electronics manufacturing and PCB assembly lines.

Highlighting the Features and Benefits of the SMT Reflow Oven

Engineered with advanced temperature control and uniform heat distribution, this SMT Reflow Oven stands as a leader for high-volume PCB assembly. Its galvanized finish and powerful electric voltage capacity ensure longevity in challenging manufacturing environments. Widely adopted in commercial electronics manufacturing, it gives your business a competitive advantage through consistent results and reduced maintenance. Strive for perfection in every PCB with this reliable oven, which meets the demands of both startups and established assembly units.

Packaging, Domestic, and Export Details for SMT Reflow Oven

Each SMT Reflow Oven is securely shipped and handed over in protective packaging, ensuring it remains in pristine condition upon delivery. We cater to leading markets across India and also charge competitive rates for export to key regions globally. Whether destined for domestic factories or international clients, our logistics processes guarantee careful handling and timely delivery so your manufacturing processes can begin without delay.

FAQ's of SMT Reflow Oven:

Q: How does the SMT Reflow Oven benefit PCB assembly units?

A: The SMT Reflow Oven provides precise temperature control, ensuring high-quality soldering and reliable connections on PCBs, which significantly reduces defects and enhances productivity in assembly units.

Q: What are the main commercial uses of this reflow oven?

A: It is primarily used in electronics manufacturing and PCB assembly, supporting both prototype development and high-volume production in industries like consumer electronics, automotive, and telecommunications.

Q: Where can this oven be shipped and handed over?

A: We ship domestically across all major industrial hubs in India and internationally, delivering the oven safely to clients in prominent export markets after thorough packaging.

Q: What process does the SMT Reflow Oven utilize?

A: The oven employs a controlled heating and cooling process to melt solder paste and attach components to printed circuit boards, ensuring reliable electronic connections.

Q: When should you consider upgrading to a first-string reflow oven?

A: You should consider upgrading when scaling up production, aiming for improved efficiency, or seeking enhanced consistency in soldering quality for demanding or high-volume assembly projects.
